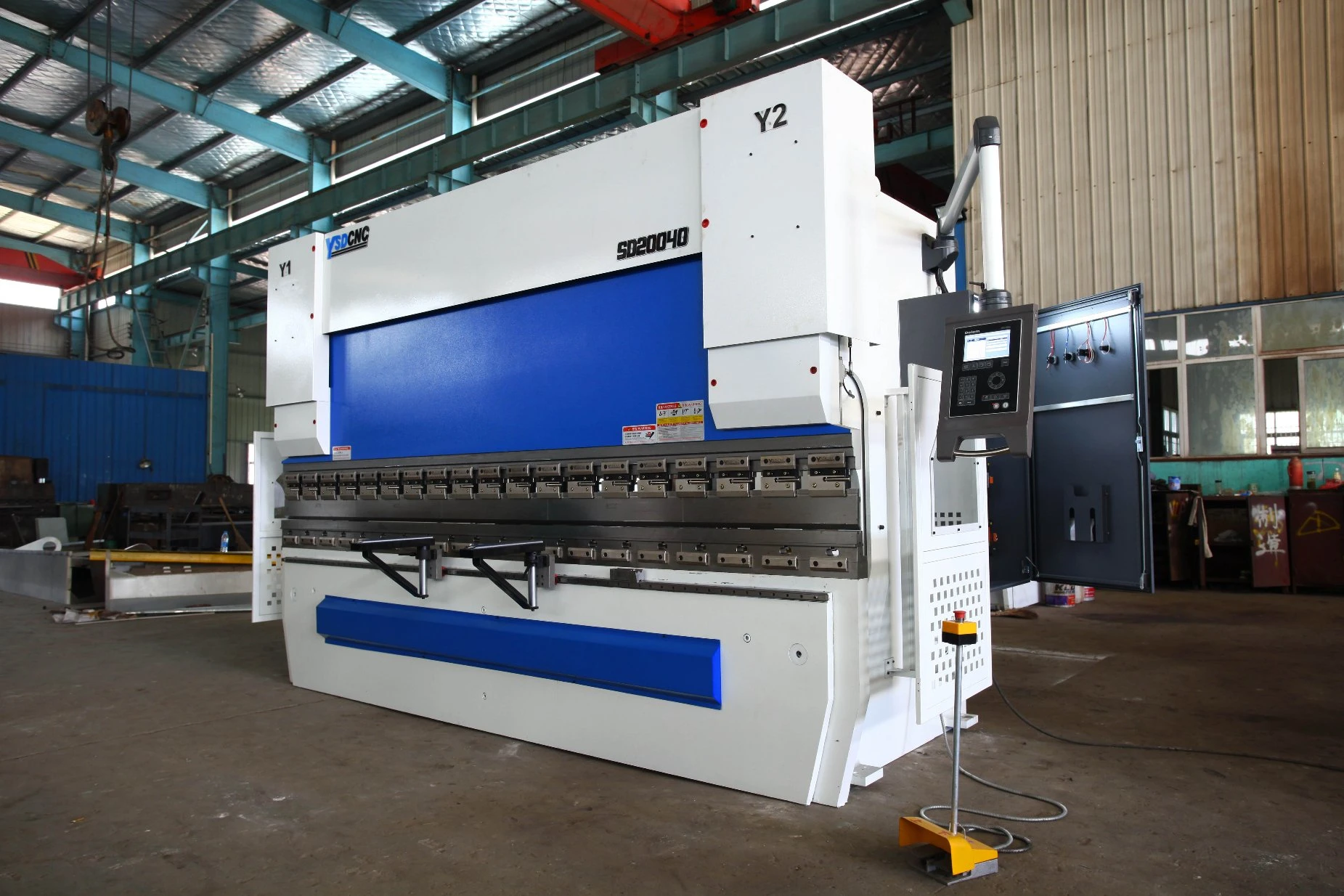

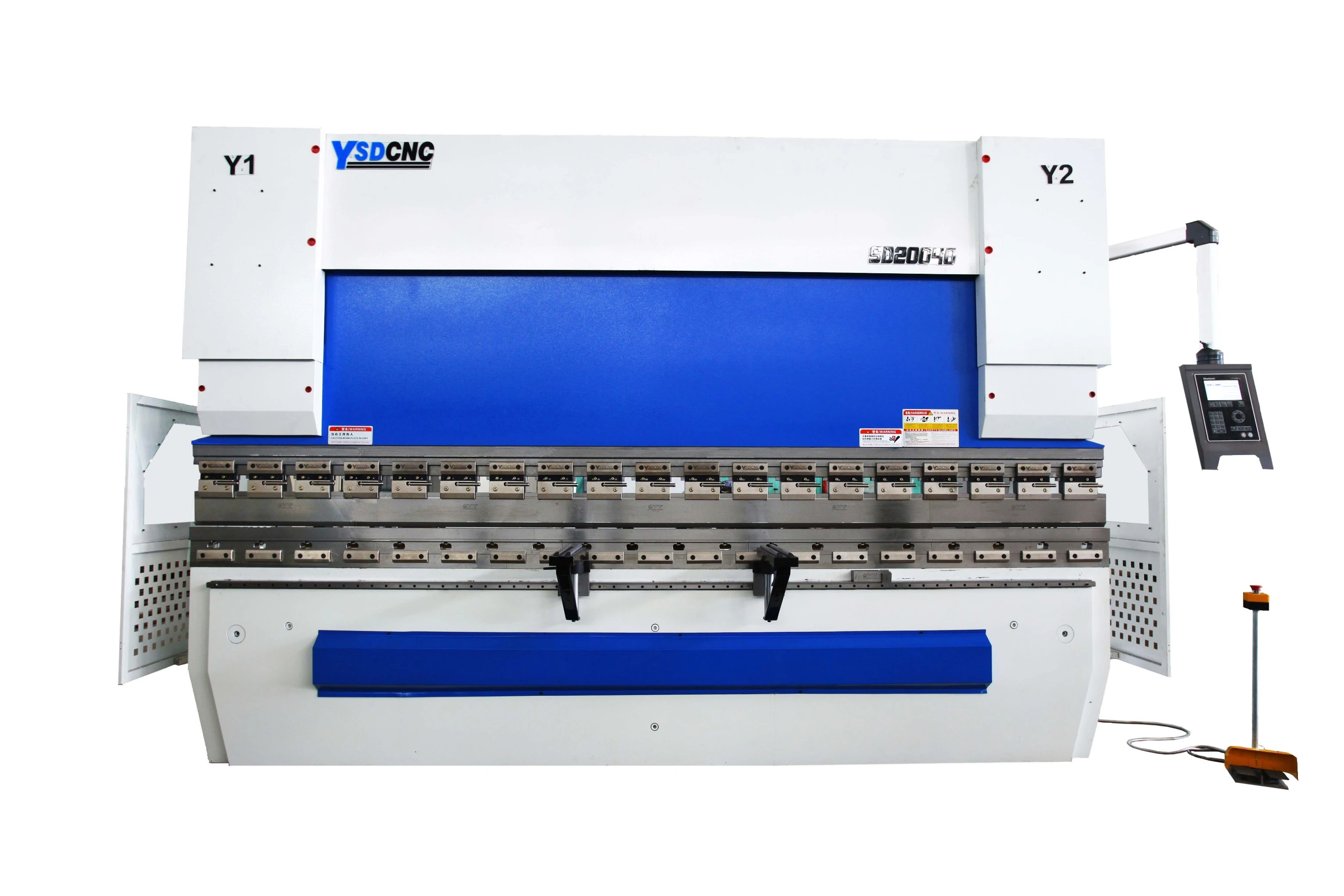

Electro-hydraulic servo CNC Press Brake


Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.



1.  Main Features:

Brand-new industry design integrated with modern aesthetic concept, high-quality fabrication technology with simple and elegant appearance.
Latest high-frequency responding hydraulic control technology, higher speed, more efficient, higher precision.
Heat treatment of the rack, rigidity optimization verification of entire machine, research and application of hydraulic compensation mechanism jointly guarantee bending precision of MB8 series Press Brakes.
Optimal ratio of parameters and top-level core configuration ensure stable performance, easy operation.
MB8 standard 2 axis backgauge system, as to complex shape work pieces, 4 or 5 axes back gauge system and corresponding dies are available for bending of complicated shaped workpieces.
Press Brake using closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to NC system by bilateral gratings, then NC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider (Y1,Y2) running with same frequency, maintaining the parallel state of the worktable.
As for different plate, CNC system can automatically control the table deflection compensation resulting in uniform length of all workpiece angles.
The use of hydraulic deflection compensation gives access to uniform full length workpieces . Hydraulic deflection compensation consists of a set of oil cylinders, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative position relationship with slider keep unchanged. Compensation values are subject to plate thickness and properties of material to be cut.

2. Main Configuration:
Holland DELEM DA66T CNC controller
Grating ruler controls depth of Y1 and Y2 axis( y1 / y2-axis 0.01mm )
Servo motor drive and control X axis(X-axis 0.05mm ), Servo motor drive and control R axis movement up and down, stopping finger easily move along the cylindrical guide rail
Maintain the accuracy of HIWIN ball screw and linear guide of 0.01mm
Front carrier position can be adjusted along the linear guide rail in the worktable direction
Use Germany Rexroth closed-loop electro-hydraulic servo synchronous control system
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider Electrics
Hydraulic and electrical overload protection
Upper are mechanical fast pinching dies. Lower are double-V replaceable dies

3. Safety Standard:

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

Front protection device for protecting finger ( safe light curtain )
South Korea KACON Pedal switch ( 4 safety grade )
Rear metal safeguards and CE standard
Safety relay monitors completed with pedal switch, safety protection
Safety standards(2006/42/EC)

4. Holland Delem DA66T Controller:

2D Touch Graphics programming, automatically calculates the bending process and detects collision
3D product figure analog display, multi-workstation dies real-time demonstrates real bending operation
17"high-resolution TFT color screen
Full-set Windows application package, maximize the operation stability, support instant shutdown
Compatible with DELEM modular structure
USB Peripheral interface
Users application programs under multitask condition
Angle-detecting sensor interface











Major Import configuration list:










 Electro-hydraulic servo CNC Press Brake
