The best choice of surface milling machine for 20-350mm square workpieces.

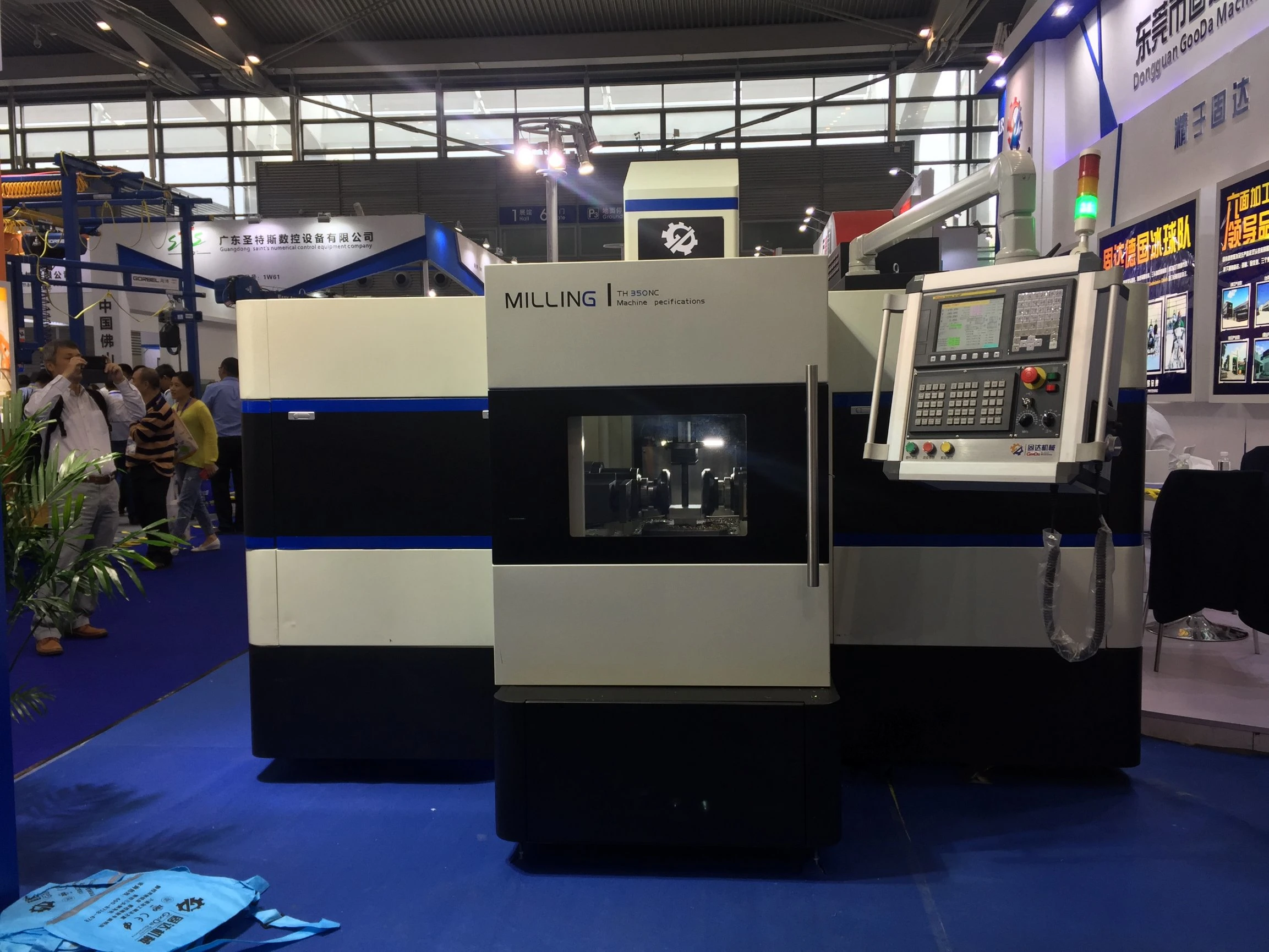

CNC twin head milling machine TH-350NC

Max. Cutting capacity: 2x1.5mm

Milling accuracy:Squareness tolerance≤0.015mm/300mm,accuracy tolerance range+/-0.01mm,roughness≤1.6um,parallelism≤0.015/300mm²


Machine base with rigid, one piece iron construction


Powerful vertical hydraulic clamping with one main cylinder

CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine


CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine

CNC Pre-Sqauring Steel Milling Machine CNC Duplex Milling Machine CNC Twin Head Milling Machine
Certificate
*   TUV ISO 9001 certificate
*   TUV certificate
*    SGS certificate
*    CE certificate
*    More than 39 patents certificate
*    National High-tech Enterprises certificate



Productivity Features
TH-350NC[Items][Unit]TH-350NC
[Cutting capacity][Width*Length of workpiece]mm20-350
[MAX.thickness of workpiece]mm145
[Travel][X axis]mm200
[Y axis]mm200
[Z axis]mm600
[Feed][Rapid feed speed X axis]mm/min10000
[Rapid feed speed Y axis]mm/min10000
[Rapid feed speed Z axis]mm/min10000
[Spindle][Cutter diameter]mm150
[Spindle speed]rpm50-500
[Spindle taper] NT-50
[Power][Spindle motor]KW2x5.5
[X servo motor]KW1.8
[Y servo motor]KW1.8
[Z servo motor]KW2
[Worktable][Dimensions]mm300*300
[Max loading Weight]kg400
[Others][machine weight]kg6000
Spacem22.9x2.8
Productivity configuration
ITEMSPECIFICATIONSQUANTITY
MainCNC Twin head milling machine
NC Controller FANUC system
Model:TH-350NC
1 set
Standard configuration
1.Servo motor rotary worktable
2. Screw type automatic chip conveyor
3. Tools and tools car
4.Closed house sheet metal
5. Full set of cushion/clamp
6. Workpiece automatic measuring
7. 90˚Workpiece positioning device
8. Air pressure system, blowing and automatic measurement
9. Three colors working light
10. Working status indicator light
11. Air cooling system electric box
12. single vertical hydraulic cylinder clamping
13. Man-machine conversation system, automatic protection, diagnosis, display

1 set
2 sets
1 set
1 set
1 set
1 set
1 set
1 set

1 set
1 set
1 set
1 set

1 set

Accessories1. Face cutter 150mm (R&L)
2. Transformer (380V to 220V)
3. Scrap car
2 sets
1 set
1 set
Productivity benefits
GooDa CNC twin head milling machines offer the following benefits:
1.has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation and other honors.
2. After sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training.

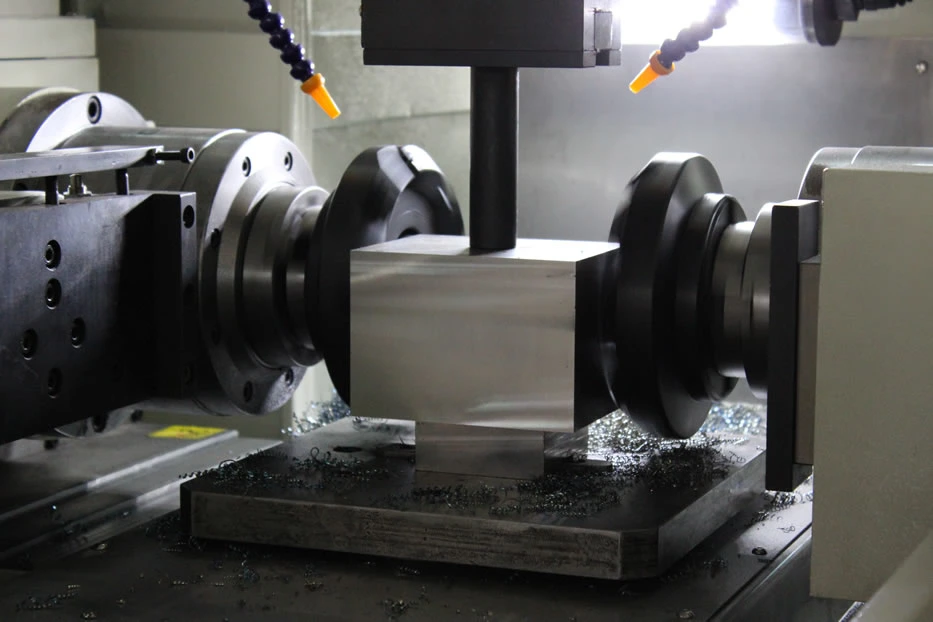

5.Save you time and money and increase your productivity by milling your tools two sides at once.
6. Maximize tool life assuring your production will pay dividends for many years.
